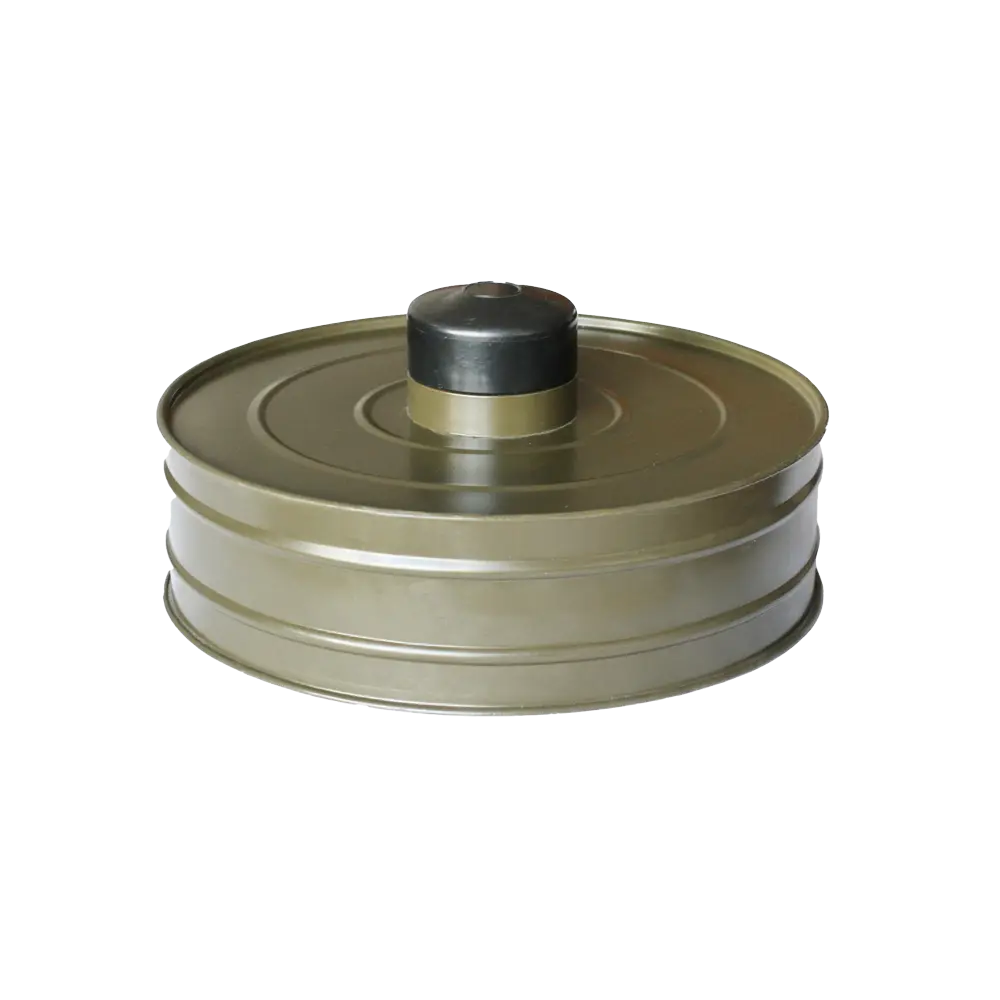

Unified Rapid-Action Smoke Candle

USC-USH

Unified rapid-action smoke candle USC-USH, daytime operation, with one-sided smoke emission, is intended for creating smoke screens and smoke-obscured areas, either manually or by means of an electric igniter, for the purpose of concealing small military objects and units from aimed fire and hiding them from enemy aerial and ground reconnaissance.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Speсifications

Smoke colour
white
Time of smoke mixture ignition
from electric lighter: up to 5 sec
from mechanical ligniter: up to 5 sec
Time of intense smoke generation
no less 5 min
Length of opaque smoke curtain
no less 100 m
Degree of ingress protection
ІРХ4
Operating temperature range
-40 … +50 °С
Candle is resistant to the influence of vibration in the frequency range from 1 to 20 Hz with an acceleration amplitude
17.6 m/s² (1.8 g)
Candle is resistant to the influence of vibration in the frequency range from 20 to 80 Hz with an acceleration amplitude
39.2 m/s² (4 g)
Dimensions:
- height (with transport cover)
no more 155 mm
- diameter
no more 325 mm
- weight
no more 13.5 kg
Group according to VST 20.39:0000.002(01)
1.14
Warranty period of storage:
- in warehouse conditions
5 years
- in field conditions
3 years
