Корабельне дозиметричне устаткування КДУ-6БМ

Shipboard Radiation Monitoring System

KDU-6BM

ТУ У 26.5-22362867-036:2014

KDU-6BM is a state-of-the-art development replacing the outdated Soviet KDU-6B unit, which, unlike its predecessor, allows taking measurements ranging from background values, as well as more accurate determining of the direction towards the detected radiation source (four detecting units have been applied instead of two).

The product is a part of the ship’s life support system and is designed to collect, process, visualize information about radiation environment aboard and determine the direction towards the source of radiation in order to take measures on crew protection from ionizing radiation and radioactive contamination, and ship maneuvering in the area that has been exposed to radioactive contamination from nuclear weapons, man-triggered disasters or other reasons.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

Features

Display of measured gamma radiation DER from 4 detecting units is simultaneous and continuous
Application of the intelligent detecting units
Detecting units have the function of the integrated detectors efficiency control with generation of check information
Three-color digital indicators of measurement results have been applied
Ability to automatically switch from the basic power system to the backup one without information loss

Purpose Of Use

Display of measurement results of ambient dose equivalent rate (DER) of gamma radiation obtained from the BDBG-6BM detecting units of gamma radiation
Determining the direction towards the source of radiation
Sound and light alarms of exceeding the gamma DER threshold levels

Delivery Kit

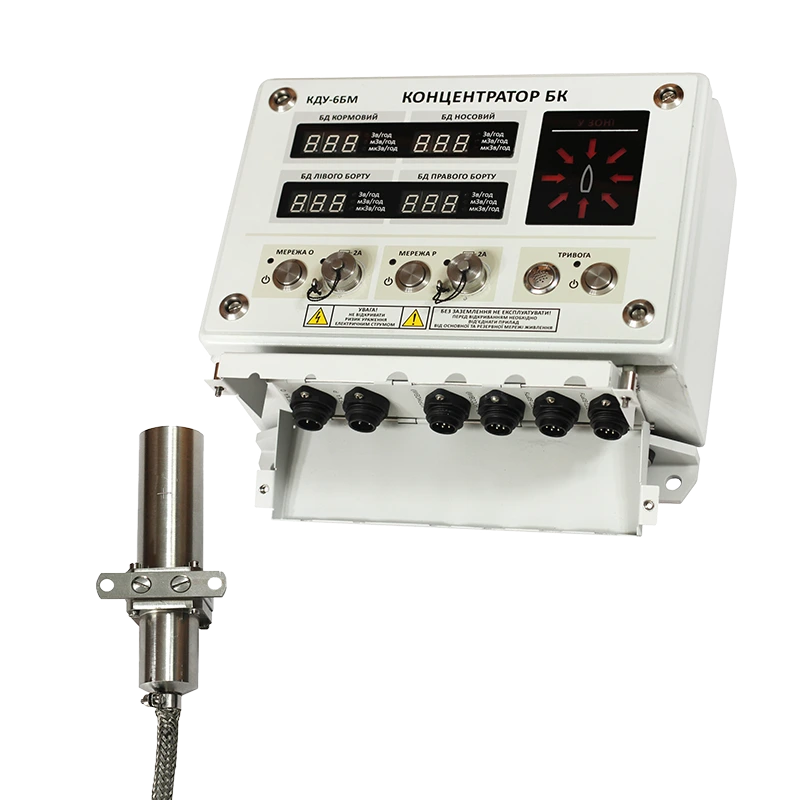

BK concentrator unit, 1 pc
BDBG-6BM gamma radiation detecting unit, 4 pcs
the set of spare tools and accessories, 1 pc., including:
- BDBG-6BM detecting unit
- BK-6BM.01 module
- BK-6BM.02 module
- BK-6BM.03 module
- BK-6BM.04 module
- passport
- case
logbook
operating manual
package

* Delivery kit may vary depending on the Customer’s demands

Specifications

Key Specifications Of The Detecting Units

Measurement range of gamma radiation DER

0.01 … 10⁷ μSv/h

Main relative permissible error limit of DER measurement at ¹³⁷Cs calibration with 0.95 confidence probability, where H*(10) – is a numeric value of DER in μSv/h

± (15+2/H*(10)) %

Energy range of the detected gamma radiation

0.05 … 3.00 MeV

Energy dependence of measurement results of the detecting unit while gamma DER measurement within the energy range from 0.05 to 1.25 MeV

±30 %

Anisotropy of the detecting unit at gamma quanta incidence at angles from +60° to -60° on horizontal and vertical planes with regard to the main measurement direction marked with “+” symbol, for ¹³⁷Cs and ⁶⁰Co isotopes does not exceed

±30 %

Operating supply voltage range of the detecting unit from external stabilized power supply

7 … 13 V

Useful current of the detecting unit for the whole range of the measured gamma radiation DER, not more than

30 mA

Time of operating mode setting and measurement time of the detecting unit, not more than

3 min

Unstable readings of the detecting unit during 24 hours of continuous operation, not more than

5 %

Additional relative permissible error limit at measurement caused by environmental temperature change from –40 to +60 °С

5 % per each 10 °С of deviation from +20 °С

Interface
