Laser Warning System with Smoke Screen Activation (for mobile platforms)

SVLO-ST

NSN in the process of being assigned

ТУ У 26.2-22362867-084:2024

SVLO-ST system is an information management system designed to detect laser irradiation of special military equipment (tanks, EW complexes, air defense complexes, speedboats) by the enemy’s laser devices (a rangefinder, a target seeker, an illuminator, etc.), determine the direction towards the laser source and activate the aerosol screen.

Features

SVLO-ST system operates in the spectral range of laser devices (rangefinders, target seekers, illuminators, etc.) which are in service with the russian federation and its partner countries
SVLO-ST is powered by the on-board system of a special-purpose
Indication and control panel allows adapting the input and output signals and transmit them via the interface
The SVLO-ST suggests the built-in control of the system operation
The system meets the requirements of group 1.11 in accordance with GOST B 20.57.304 standard, climatic performance UKhL (regions with a moderate and cold climate) in accordance with GOST 15150 in terms of resistance to the influence of climatic and other factors of the environment

Purpose Of Use

Detects laser irradiation by laser guidance devices of the enemy
Identifies an irradiator type (a rangefinder, a target seeker, or an illuminator)
Notifies of the object irradiation by laser guidance devices of the enemy
Determines the direction towards the laser source
Activates aerosol screen

Application

SVLO-ST system is installed on special military equipment (tanks, EW complexes, air defense complexes, speedboats)
The SVLO-ST system has 3 operation modes:
- automatic (AUT)
- semi-automatic (P-AUT)
- emergency (GROUP)
When laser irradiation of an object by the enemy’s devices is detected, sound and light alarms are triggered, and aerosol grenades are fired in automatic or manual mode using the operator’s button in the direction of irradiation

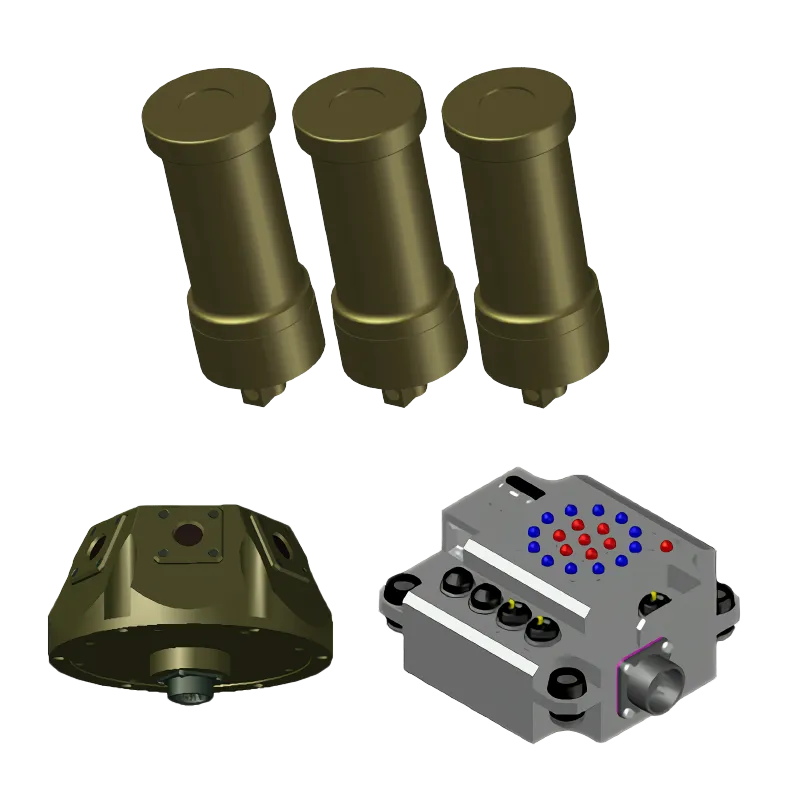

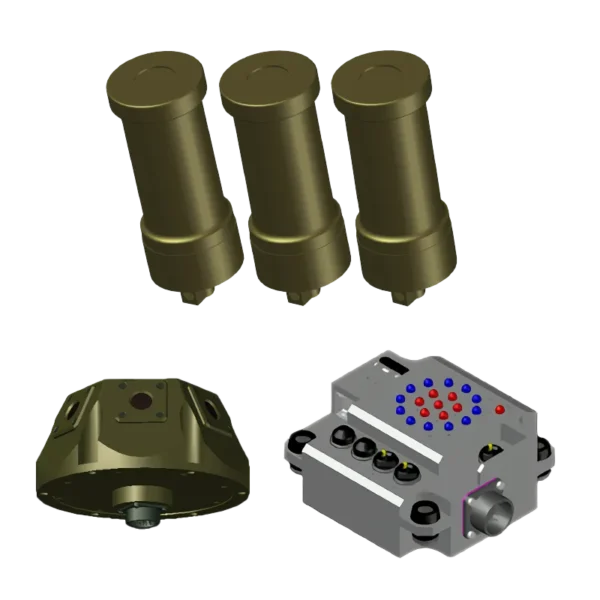

Delivery Kit

Laser detector PLO-ST – 1 pc.
indication and control panel PU SVLO 1 – 1 pc.
set of launchers – 6 or 12 pcs
wiring harness – 1 pc.
backup power source
power converter with a charging device (for operation from all types of on-board electrical networks of armored weapons and special-purpose military equipment)
logbook
operating manual
mounting parts kit
package
