Laser Warning System with Smoke Screen Activation (for critical infrastructure)

SVLO-S

SVLО-S system – system is an information management system designed to detect laser irradiation of fixed objects (structures) by enemy laser devices (a rangefinder, a target seeker, an illuminator, etc), determine the direction towards the laser source and activate the aerosol screen.

Features

SVLO-S system operates in the spectral range of laser devices (rangefinders, target seekers, illuminators, etc.) which are in service with the russian federation and its partner countries
SVLO-S is equipped with an autonomous power supply, as well as an electric power converter with a charger (for operation from a 220 V power supply)
The PLO-S laser irradiation detector can be installed on various surfaces, beams, consoles, etc
Indication and control panel allows adapting the input and output signals and transmit them via the interface
The system suggests the built-in control of the system operation
The system meets the requirements of group 1.14 according to GOST B 20.57.304 standard, climatic performance UKhL according to GOST 15150 in terms of resistance to climatic and other environmental factors

Purpose Of Use

Detects laser irradiation by laser guidance devices of the enemy
Identifies an irradiator type (a rangefinder, a target seeker, an illuminator)
Notifies of the object irradiation
Determines the direction towards the laser source
Activates aerosol screen

Application

SVLO-S system is installed on fixed objects (structures)
The SVLO-S system has 3 operation modes:
- automatic (АUTO)
- semi-automatic (A-SHIFT)
- emergency (GROUP)
When laser irradiation of an object by the enemy’s devices is detected, sound and light alarms are triggered and an aerosol screen is activated

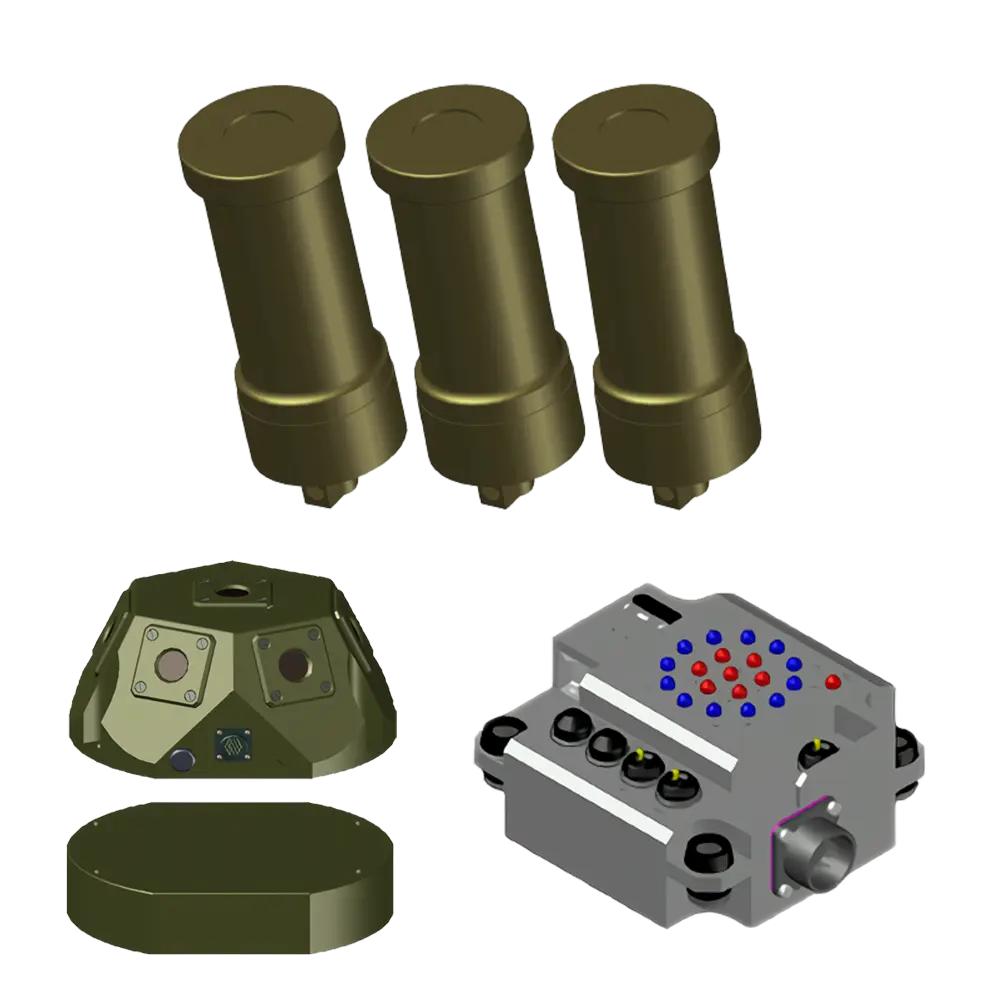

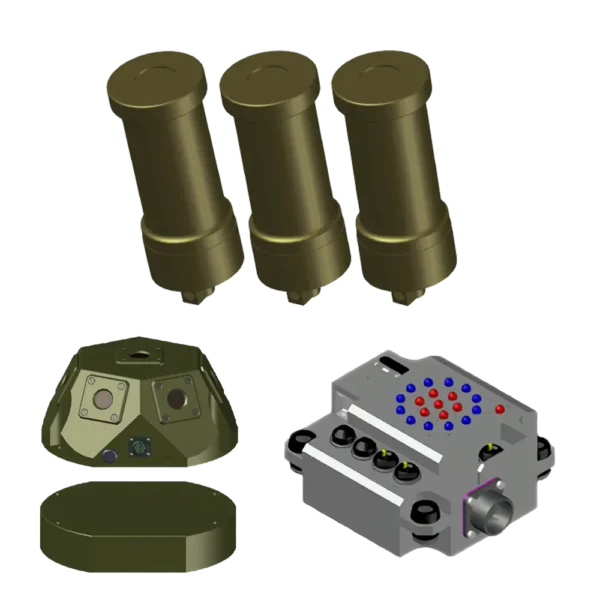

Delivery Kit

laser detector PLО-ST – 1 pc.
indication and control panel
set of launchers
autonomous power supply unit
power converter with a charger (for operation from a 220 V power supply network)
harness
logbook
operating manual
spare parts set
tools and accessories
package
