On-board Radiation Reconnaissance System

MKS-UM VRS

MKS-UM is not only a universal wide-range radiation survey device that is successfully used by law enforcement agencies. Now it’s a 2-in-1 instrument! MKS-UM can be used as part of the on-board radiation reconnaissance system MKS-UM VRS on land vehicles and on-board ships.

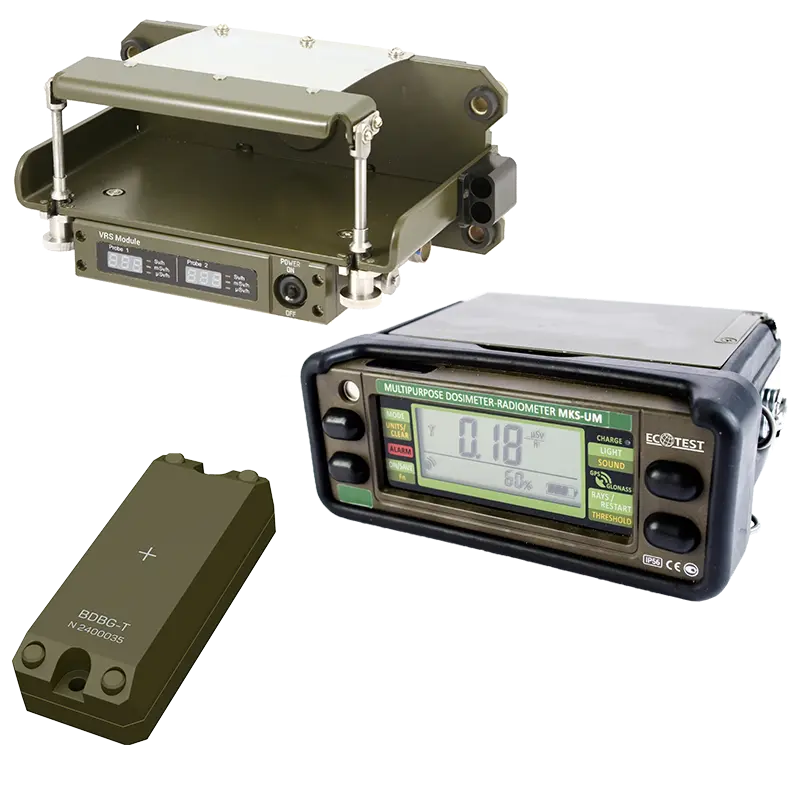

On-board Radiation Reconnaissance System MKS-UM VRS includes:

  • Control unit of MKS-UM Multipurpose Survey Meter
  • VRS Module
  • Two remote probes BDBG-T of gamma radiation detection

The concept of MKS-UM VRS installing on special-purpose transport.

BDBG-T gamma radiation detection probes are installed outside the vehicle on the left and right sides and provide constant monitoring of the radiation situation.

To obtain information about our products during the preparation of tender or contractual documentation, please contact our representatives via the provided contacts. We continuously improve our products and expand their functionality in line with market needs by applying the latest technologies, modern components, and materials. Therefore, specifications, descriptions, and configurations are subject to change without prior notice.

System configuration and operation principle

  • The detection units have a high degree of protection IP67
  • A wide range of measurements is provided by two built-in scintillation detectors
  • The measurement results are transmitted to the VRS module via the RS-485 interface
  • The VRS module is installed inside the vehicle in order to obtain data from external detection probes and display the results of their measurements on two digital LED displays
  • The VRS module provides communication between the MKS-UM control unit and the on-board computer of the vehicle via the RS-485 interface
  • The MKS-UM control unit is installed in the VRS module
  • The MKS-UM control unit can be easily disconnected from the VRS module and be used autonomously as a portable survey device

VRS module

  • Data exchange between external gamma detection probes, MKS-UM control panel and the vehicle on-board computer
  • Display of measurement results from remote detection probes on two digital LED displays
  • 3 LED indicators of dimensions of measurement results (μSv/h, mSv/h, Sv/h)
  • The module is powered from the vehicle on-board network

BDBG-T

  • Measurement range of gamma and X-ray radiation DER 0.01 µSv/h … 20 Sv/h
  • Energy range of detected gamma radiation 50 KeV … 3 MeV
  • Main relative permissible error, not more than ±15 %
  • Operating temperature range -30 … +55 °С
  • Weight of the device, not more than 1 kg
  • Dimensions of the device, not more than 100 × 174 × 44 mm
  • Ingress protection level IP67
